CST SOLAR Aviation Led Low Intensity Type A Obstruction Light

CST SOLAR Aviation Led Low Intensity Type A Obstruction Light

Regular price Rp 27.435.000 IDR
Regular price Rp 29.355.000 IDR Sale price Rp 27.435.000 IDR
Sale Sold out
Shipping calculated at checkout.
Type
Request For Quote

Technical Details

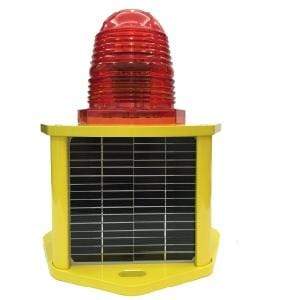

Datasheet for Single lamp clicks here.

Datasheet for twin lamp clicks here.

For the certificate click here.


*Check stock before ordering Lead 6 weeks*

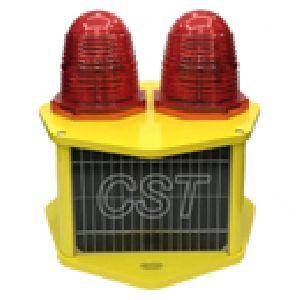

CS -810 SOLAR  LED TWIN LIGHT (LOW-INTENSITY TYPE –A )

BUILT-IN AUTO RELAY AND PHOTO-CELL

Application:

CS-810/T Low-intensity Double Solar-Powered Aviation Obstruction Light can be provided with power supply without power transmission cables by solar power, so it is suitable for those locations, Electric Tower, High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc especially which are hard to lay the cable or lack of power supply as well as those facilities which have high requirements on lightning protection.

Advantage

1.International advanced solar panels reaching at least 10 years of service life.

2. Comprehensive protection in voltage short, over-voltage, floating Charge, and temperature.

3.Built-in Solar Panel.

4. Strong corrosion resistance, Rain and Snow, Shock and Vibrations protection, and UV protection.

5. International-advanced cold LED with low power consumption, high brightness, and service life of light source reaching 100000hours.

6. Clean, renewable, green, and reliable energy source

7.Dusk-to-dawn operation: Solar Panel which is equal to Built-in photocell inside light can let light work at night and close during the day automatically.

8. At least 5 days of autonomy (optional 20days).

9. Recyclable batteries with the lightest environment.

10. Small volume especially being suitable for Telecom Tower and Electric installation way.

Main Parameter

1.Mode:CS-810/T

2.Standard: ICAO (Aerodromes Annex 14) Low-intensity Type A, FAA L-810

3.Light intensity:≥10cd

4.Working mode: Steady-burning mode or Flash mode(20-60times/minute)

5.Light source: LED,100,000hours service life

6.Operating voltage: DC12V(Solar-powered Way), recyclable batteries with the lightest environmental and long life.

7. Material: -Housing: PC -Base: die-casting aluminum

8.Autonomy(without sunlight):at least 5 days(Option 20days)

9.Working way of two lights: Two lights flashing 1.5-second interval.

10.Power Consumption:5W

11. Overall Size(mm): 303 by 220 by 292

12.Installation Size:Ø250 by M10 by 4

13.Weight:5Kg

14.Emitting Color: Red

15.Ambient Temperature:-40℃~+60℃

16.Wind load:80m/s

17. Protection Standard: IP65
