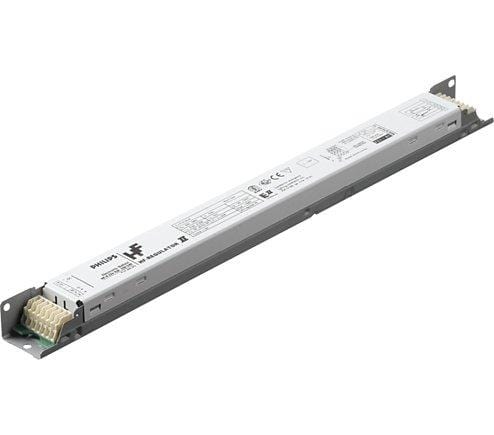

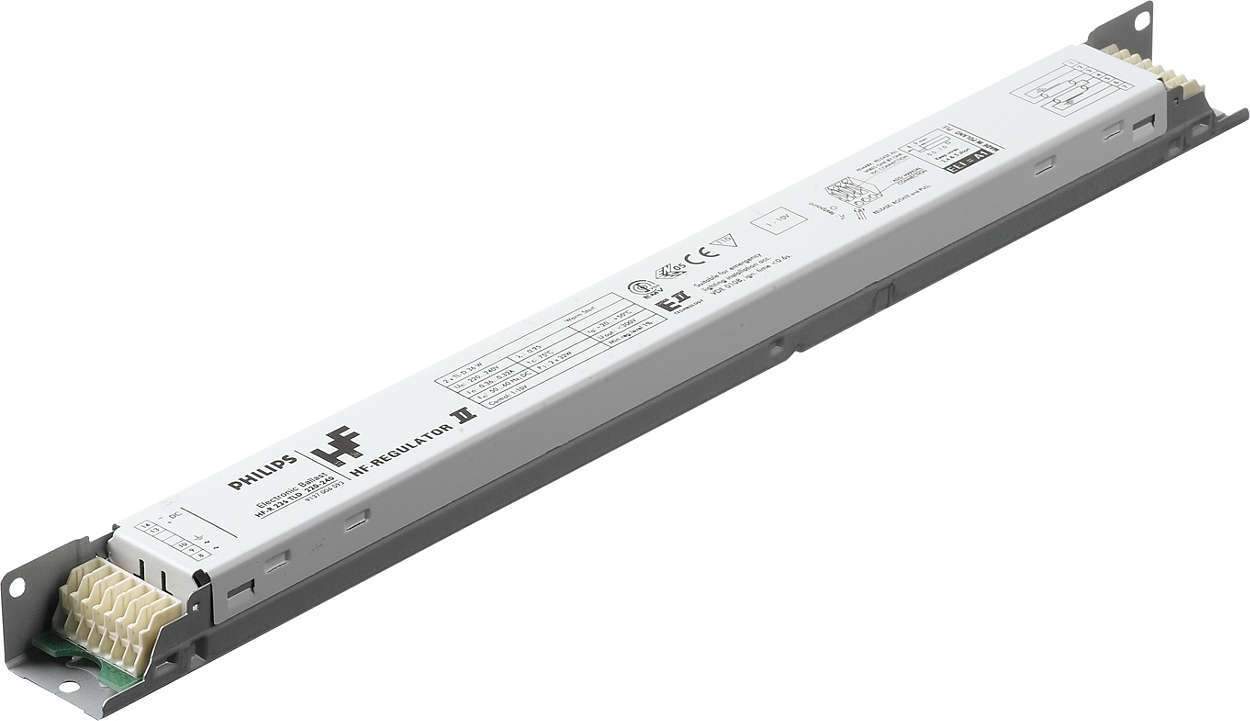

PHILIPS HF-R TLD EII 220-240V 50/60Hz x12PCs

PHILIPS HF-R TLD EII 220-240V 50/60Hz x12PCs

Regular price Rp 8.235.000 IDR
Regular price Rp 8.811.000 IDR Sale price Rp 8.235.000 IDR
Sale Sold out
Shipping calculated at checkout.

SKU:913700609266

Power
No_Of_Lamps
Request For Quote
General Information
Application Code
EII
Type Version
mk2
Lamp Type
TL-D
Number of Lamps
1/2 piece/unit
Number of Products on MCB (16A Type B) (Nom)
28
Automatic Restart
Yes
Operating and Electrical
Input Voltage
220 to 240 V
Input Frequency
50 to 60 Hz
Operating Frequency (Max)
89 kHz
Operating Frequency (Min)
45 kHz
Ignition Method
Programmed Start
Crestfactor (Max)
1.7
Power Factor 100% Load (Nom)
0.95
Ignition Time (Max)
0.2 s
Mains Voltage Performance (AC)
-8%-+6%
Mains Voltage Safety (AC)
-10%-+10%
Earth Leakage Current (Max)
0.5 mA
Inrush Current Width
0.25 ms
Power Losses (Nom)
5.5 W
Inrush Current Peak (Max)
27 A
Wiring
Connector Type Input Terminals
WAGO 251 universal connector  [ Suitable for both automatic wiring (ALF and ADS) and manual wiring]
Connector Type Output Terminals
WAGO 251 universal connector  [ Suitable for both automatic wiring (ALF and ADS) and manual wiring]
Connector Type Control Input Terminals
WAGO 251 universal connector  [ Suitable for both automatic wiring (ALF and ADS) and manual wiring]
Wire Striplength
8.0-9.0 mm
Dual Fixture Master/Slave
Not applicable  [ Master/Slave oper. not applicable]
Control Input Terminal Cross Section
0.50-1.00 mm²
Input Terminal Cross Section
0.50-1.00 mm²
Output Terminal Cross Section
0.50-1.00 mm²
Auto Insert (ALF/ADS) Wire Cross Section
0.5 mm²
System characteristics
Rated Ballast-Lamp Power
36 W
Temperature
T-Ambient (Max)
50 °C
T-Ambient (Min)
10 °C
T-Storage (Max)
80 °C
T-Storage (Min)
-25 °C
Stable Lamp Operation Temperature
Not Specified
T-Ignition (Max)
50 °C
T-Ignition (Min)
0 °C
Controls and Dimming
Control Interface
1-10V
Regulating Level Power
1%-100%
Control Input Protection
Yes (Basic insulation)
Mechanical and Housing
Housing
L 360x30x21
Emergency Operation
Battery Voltage Lamp Ignition
196 V
Battery Voltage Lamp Operation
154-276
Approval and Application
Energy Efficiency Index
A1 BAT
IP Classification
IP 20  [ Ingress Protection 20]
EMI 9 kHz ... 30 MHz
EN55015
EMI 30 MHz ... 1000 MHz
EN55022 level B
Safety Standard
IEC 61347-2-3
Performance Standard
IEC 60929
Quality Standard
ISO 9000:2000
Environmental Standard
ISO 14001
Harmonic Current Emission Standard
IEC 61000-3-2
EMC Immunity Standard
IEC 61547
Vibration Standard
IEC68-2-6 F c
Bumps Standard
IEC 68-2-29 Eb
Humidity Standard
EN 61347-2-3 clause 11
Approval Marks

CE marking

ENEC certificate

VDE-EMV certificate

Temperature Marking
Yes
Emergency Standard
IEC 60598-2-22
Hum And Noise Level
Inaudible
