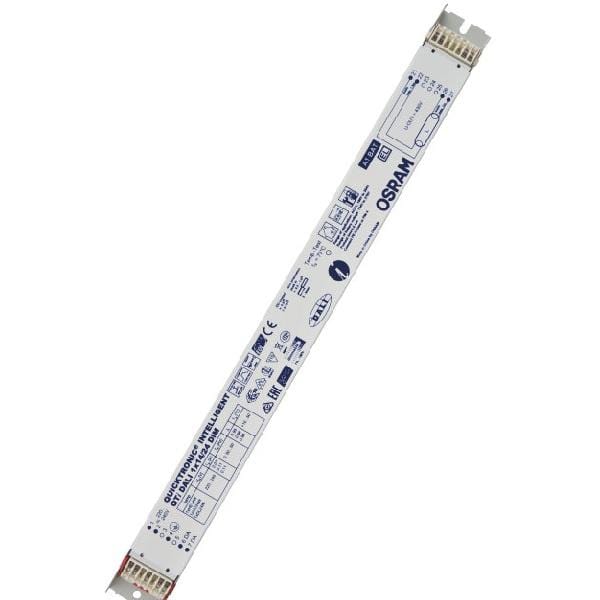

Osram Quicktronic QTi 1X14-24W Intelligent Dimmable T5 Fluorescent Ballast x20Pcs

Osram Quicktronic QTi 1X14-24W Intelligent Dimmable T5 Fluorescent Ballast x20Pcs

Regular price Rp 21.000.000 IDR
Regular price Rp 22.500.000 IDR Sale price Rp 21.000.000 IDR
Sale Sold out
Shipping calculated at checkout.


Request For Quote
Product family benefits
  • System+ Guarantee available
  • Easy integration in luminaire thanks to same dimensions like DALI GI ECG
  • TouchDIM function for easy and inexpensive dimming of several ECGs
  • Same luminous flux with direct and alternating current
  • Dimming of amalgam lamps without flickering or reduced lifespan
  • Automatic restart after lamp replacement
DALI product features
  • Control via the DALI interface
  • Compliance with the DALI Version-1 and IEC 60929
  • Control input protected against overvoltage and polarity reversal (OSRAM ECG)
Touch DIM and Touch DIM Sensor function
  • Manual dimming without controller and with standard switches
  • Including memory function (double click) and soft start
Areas of application
  • Suitable for use in emergency lighting systems as per EN 50172/DIN VDE 0108-100
  • Installation in emergency lighting systems according to IEC 61347-2-3, appendix J
  • Industry
  • Open-plan offices, corridors and storage rooms
  • Public buildings
  • Sports halls and factories
  • Strip lighting
  • Shop lighting
  • Suitable for luminaires of protection class I

Technical Data

Electrical data

Input voltage AC

198…264 V

Nominal voltage

220…240 V

Mains frequency

50…60 Hz

Input voltage DC

154…276 V

Operating frequency

53…120 kHz

Max. ECG no. on circuit breaker 10 A (B)


Max. ECG no. on circuit breaker 16 A (B)


Inrush current

24 A

Light technical data

Starting time

0.6 s

Dimensions & weight


360.0 mm


30.0 mm


21.0 mm

Mounting hole spacing, length

350.0 mm

Product weight

278.00 g

Cable cross-section, input side

0.5…1.5 / 0.5…1.0 mm²

Cable cross-section, output side

0.5…1.5 / 0.5…1.0 mm²

Temperatures & operating conditions

Ambient temperature range

+10…+50 °C

Permitted rel. humidity during operation

5…85 %


ECG lifetime

100000 h

Additional product data

Suitable for lamp power (1 lamp)

14…24 W


Dimming interface

DALI / Touch DIM / Touch DIM Sensor

Dimming range

1…100 %



Overheating protection

Power reduction and switch off at T > 75 °C at the tc point

Suitable for fixtures with prot. class


End of lamp life safety shutdown


Max. cable length to lamp/LED module

1.0 m / 1.5 m

Certificates & standards

Approval marks – approval



Acc. to EN 61347-2-3/Acc. to EN 60929/Acc. to EN 55015:2006 + A1:2007/Acc. to EN 61000-3-2/Acc. to EN 61547/Acc. to IEC 62386-101:Ed1/Acc. to IEC 62386-102:Ed1

Protection class


EEI – Energy Label


Type of protection
