S7

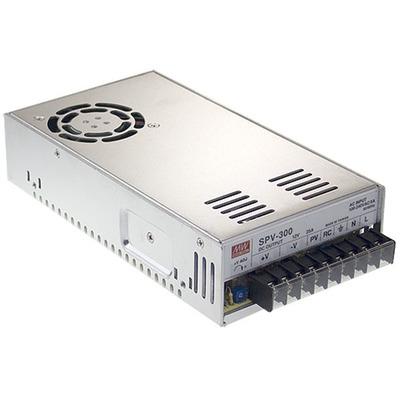

MEANWELL SPV Series With PFC x12pcs

MEANWELL SPV Series With PFC x12pcs

Regular price Rp 25.412.400 IDR
Regular price Rp 27.198.000 IDR Sale price Rp 25.412.400 IDR
Sale Sold out
Shipping calculated at checkout.

SKU:SPV-300-12

Power
Voltage
Request For Quote

Datasheet

Features :

  • Universal AC input / Full range
  • Built-in active PFC function, PF>0.95
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Forced air cooling by built-in DC Fan
  • Output voltage programmable from 20~110% by 1~5.5VDC external control signal
  • Built-in remote ON-OFF control
  • Built-in fan speed control
  • Fixed switching frequency at 100KHz

Specification:

MODEL

SPV-300-12

SPV-300-24

SPV-300-48















OUTPUT

DC VOLTAGE

12V

24V

48V

RATED CURRENT

25A

12.5A

6.25A

CURRENT RANGE

0 ~ 25A

0 ~ 12.5A

0 ~ 6.25A

RATED POWER

300W

300W

300W

RIPPLE & NOISE (max.) Note.2

150mVp-p

150mVp-p

240mVp-p

VOLTAGE ADJ. RANGE

10.8 ~ 13.2V

20 ~ 26.4V

41 ~ 52.8V

VOLTAGE TOLERANCE Note.3

±1.0%

±1.0%

±1.0%

LINE REGULATION

±0.3%

±0.2%

±0.2%

LOAD REGULATION

±0.5%

±0.5%

±0.5%

SETUP, RISE TIME

800ms, 50ms/230VAC             2500ms, 50ms/115VAC at full load

HOLD UP TIME (Typ.)

16ms/230VAC            16ms/115VAC at full load









INPUT

VOLTAGE RANGE            Note.5

88 ~ 264VAC           124 ~ 370VDC

FREQUENCY RANGE

47 ~ 63Hz

POWER FACTOR (Typ.)

PF>0.95/230VAC            PF>0.98/115VAC at full load

EFFICIENCY (Typ.)

83.5%

85%

86.5%

AC CURRENT (Typ.)

3.6A/115VAC           1.8A/230VAC

INRUSH CURRENT (Typ.)

20A/115VAC            45A/230VAC

LEAKAGE CURRENT

<1mA / 240VAC







PROTECTION



OVERLOAD

105 ~ 135% rated output power

Protection type : Constant current limiting, recovers automatically after fault condition is removed



OVER VOLTAGE

13.8 ~ 16.2V

27.6 ~ 32.4V

57.6 ~ 67.2V

Protection type : Shut down o/p voltage, re-power on to recover

OVER TEMPERATURE

Shut down o/p voltage, recovers automatically after temperature goes down



FUNCTION

REMOTE CONTROL

4 ~ 10VDC power off, <0 ~ 0.8VDC power on

OUTPUT VOLTAGE TRIM

2.4 ~ 13.2V

4.8 ~ 26.4V

9.6 ~ 52.8V





ENVIRONMENT

WORKING TEMP.

-20 ~ +65℃ (Refer to "Derating Curve")

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +85℃, 10 ~ 95% RH non-condensing

TEMP. COEFFICIENT

±0.03%/℃ (0 ~ 50℃)







SAFETY EMC

(Note 4)

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY STANDARDS

UL60950-1, TUV EN60950-1, EAC TP TC 004 approved

WITHSTAND VOLTAGE

I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH

EMC EMISSION

Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A, EAC TP TC 020



OTHERS

MTBF

207K hrs min.        MIL-HDBK-217F (25℃)

DIMENSION

215*115*50mm (L*W*H)

PACKING

1.1Kg; 12pcs/14Kg/0.92CUFT

NOTE

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.

4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on     a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com}

5. Derating may be needed under low input voltages. Please check the derating curve for more details.

6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft}.
