S7

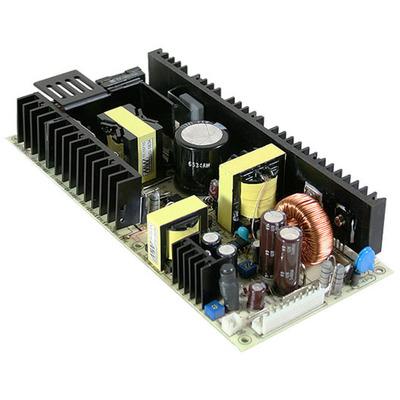

MEANWELL PID Series with PFC x18pcs

MEANWELL PID Series with PFC x18pcs

Regular price Rp 48.330.000 IDR
Regular price Rp 51.840.000 IDR Sale price Rp 48.330.000 IDR
Sale Sold out
Shipping calculated at checkout.
Power
Sub_Type

Datasheet

Features :

  • Universal AC input / Full range
  • lsolated output & GND for CH1,CH2
  • Built-in active PFC function, PF>0.92
  • Protections:Short circuit / Overload / Over voltage / Over temperature
  • Remote control for CH1
  • Peak load 170% for CH1 within 10
  • Cooling by free air convection
  • 100% full load burn-in test

Specification:

MODEL

PID-250A

PID-250B

PID-250C

PID-250D



















OUTPUT

OUTPUT NUMBER

CH1

CH2

CH1

CH2

CH1

CH2

CH1

CH2

DC VOLTAGE

12V

5V

24V

5V

36V

5V

48V

5V

RATED CURRENT

15A(Peak 20A)

5A

9.4A(Peak 16.7A)

5A

6.3A(Peak 11.1A)

5A

4.7A(Peak 8.4A)

5A



CURRENT RANGE           Note.6

0 ~ 15A

(Peak 20A)

0 ~ 5A

0 ~ 9.4A (Peak 16.7A)

0 ~ 5A

0 ~ 6.3A (Peak 11.1A)

0 ~ 5A

0 ~ 4.7A (Peak 8.4A)

0 ~ 5A

RATED POWER

205W

250.6W

251.8W

250.6W

RIPPLE & NOISE (max.) Note.2

120mVp-p

50mVp-p

150mVp-p

50mVp-p

200mVp-p

50mVp-p

200mVp-p

50mVp-p

VOLTAGE ADJ. RANGE

10.8 ~ 13.2V

4.75 ~ 5.25V

21.6 ~ 26.4V

4.75 ~ 5.25V

32.4 ~ 39.6V

4.75 ~ 5.25V

43.2 ~ 52.8V

4.75 ~ 5.25V

VOLTAGE TOLERANCE Note.3

±3.0%

±2.0%

±2.0%

±2.0%

±2.0%

±2.0%

±2.0%

±2.0%

LINE REGULATION

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

LOAD REGULATION

±1.0%

±2.0%

±1.0%

±2.0%

±1.0%

±2.0%

±1.0%

±2.0%

SETUP, RISE TIME

2500ms, 60ms/115VAC      1200ms, 60ms/230VAC

HOLD UP TIME (Typ.)

30ms at full load









INPUT

VOLTAGE RANGE            Note.5

90 ~ 264VAC           127 ~ 370VDC

FREQUENCY RANGE

47 ~ 63Hz

POWER FACTOR

PF≧0.92/230VAC           PF≧0.97/115VAC at full load

EFFICIENCY(Typ.)

83%

86%

86%

86%

AC CURRENT (Typ.)

3A/115VAC         1.5A/230VAC

INRUSH CURRENT (Typ.)

COLD START 58A/230VAC

LEAKAGE CURRENT

<3.5mA / 240VAC











PROTECTION







OVERLOAD

CH1: 105 ~ 170% rated output power

Normally work within 10 sec and then shut down, re-power on to recover

Over 180% rated power or short circuit, constant current limiting within 10 sec and then shut down, re-power on to recover

CH2: 101 ~ 150% rated output power

Protection type : Hiccup mode, recovers automatically after fault condition is removed





OVER VOLTAGE

13.8 ~ 16.2V

5.5 ~ 6.75V

27.6 ~ 32.4V

5.5 ~ 6.75V

40 ~ 48V

5.5~ 6.75V

54 ~ 64.8V

5.5 ~ 6.75V

Protection type : Shut down o/p voltage, re-power on to recover for CH1 ; Hiccup mode, recovers automatically afer fault condition

is removed for CH2(by zener diode clamp)

OVER TEMPERATURE

Shut down o/p voltage(CH1), recovers automatically after temperature goes down

FUNCTION

REMOTE CONTROL

CN52 : Open=CH1 & CH2 power on ; Short = CH1 power off, CH2 power on; when CH2 is malfunction, CH1 will be shut down







ENVIRONMENT

WORKING TEMP.

-20 ~ +70℃ (Refer to "Derating Curve")

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-20 ~ +85℃, 10 ~ 95% RH

TEMP. COEFFICIENT

±0.05%/℃ (0 ~ 50℃)

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, period for 60min each along X, Y, Z axes



SAFETY & EMC

(Note 4)

SAFETY STANDARDS

UL62368-1, TUV EN62368-1, EAC TP TC 004 approved

WITHSTAND VOLTAGE

I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH

EMC EMISSION

Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11, EN61000-6-2, heavy industry level, criteria A, EAC TP TC 020



OTHERS

MTBF

150.4K hrs min.       MIL-HDBK-217F (25℃)

DIMENSION

222*95*40mm (L*W*H)

PACKING

0.74Kg; 18pcs/14.3Kg/0.88CUFT

NOTE

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.

4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on    a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMl testing of component power supplies.” (as available on http://www.meanwell.com}

5. Derating may be needed under low input voltage. Please check the derating curve for more details.

6. Peak current should reduce to 150% of rated value if the input voltage <110VAC.

7. Heat Sink HS1,HS2,HS3 can not be shorted.
