S7

MEANWELL HRP Series With PFC

MEANWELL HRP Series With PFC

Regular price Rp 42.726.600 IDR
Regular price Rp 45.720.000 IDR Sale price Rp 42.726.600 IDR
Sale Sold out
Shipping calculated at checkout.
Power
Voltage
Request For Quote

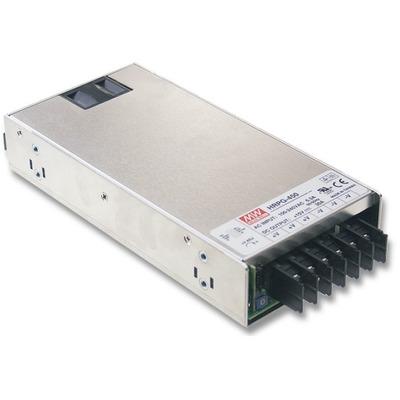

HRP-450W

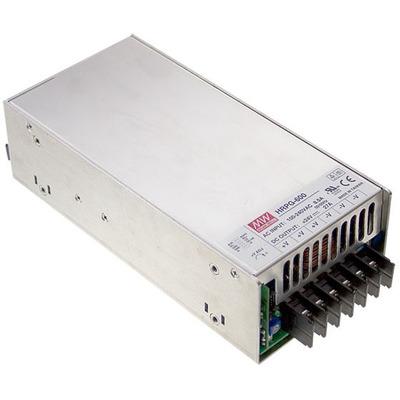

HRP-600W

Features :

  • Universal AC input / Full range
  • Built-in active PFC function, PF>0.95
  • High efficiency up to 5%
  • Withstand 300VAC surge input for 5 seconds
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Built-in constant current limiting circuit
  • Built-in cooling Fan ON-OFF control
  • Built-in DC OK signal
  • Built-in remote sense function

Specification:

MODEL

HRP-450-3.3

HRP-450-5

HRP-450-7.5

HRP-450-12

HRP-450-15

HRP-450-24/600-24

HRP-450-36

HRP-450-48















OUTPUT

DC VOLTAGE

3.3V

5V

7.5V

12V

15V

24V

36V

48V

RATED CURRENT

90A

90A

60A

37.5A

30A

18.8A/27A

12.5A

9.5A

CURRENT RANGE

0 ~ 90A

0 ~ 90A

0 ~ 60A

0 ~ 37.5A

0 ~ 30A

0 ~ 18.8A/0~27A

0 ~ 12.5A

0 ~ 9.5A

RATED POWER

297W

450W

450W

450W

450W

451.2W/648W

450W

456W

RIPPLE & NOISE (max.) Note.2

80mVp-p

80mVp-p

100mVp-p

120mVp-p

150mVp-p

150mVp-p

240mVp-p

240mVp-p

VOLTAGE ADJ. RANGE

2.8 ~ 3.8V

4.3 ~ 5.8V

6.8 ~ 9V

10.2 ~ 13.8V

13.5 ~ 18V

21.6 ~ 28.8V

28.8 ~ 39.6V

40.8 ~ 55.2V

VOLTAGE TOLERANCE Note.3

±2.0%

±2.0%

±2.0%

±1.0%

±1.0%

±1.0%

±1.0%

±1.0%

LINE REGULATION

±0.5%

±0.5%

±0.5%

±0.3%

±0.3%

±0.2%

±0.2%

±0.2%

LOAD REGULATION

±1.0%

±1.0%

±1.0%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

SETUP, RISE TIME

1000ms, 100ms/230VAC             2500ms, 100ms/115VAC at full load

HOLD UP TIME (Typ.)

16ms/230VAC            16ms/115VAC at full load









INPUT

VOLTAGE RANGE            Note.5

85 ~ 264VAC           120 ~ 370VDC

FREQUENCY RANGE

47 ~ 63Hz

POWER FACTOR (Typ.)

PF>0.95/230VAC            PF>0.99/115VAC at full load

EFFICIENCY (Typ.)

80%

83%

86.5%

88%

89%

88%

89%

89.5%

AC CURRENT (Typ.)

5A/115VAC         2.4A/230VAC

INRUSH CURRENT (Typ.)

35A/115VAC           70A/230VAC

LEAKAGE CURRENT

<1.5mA / 240VAC







PROTECTION



OVERLOAD

105 ~ 135% rated output power

Protection type : Constant current limiting, recovers automatically after fault condition is removed



OVER VOLTAGE

3.96 ~ 4.62V

6 ~ 7V

9.4 ~ 10.9V

14.4 ~ 16.8V

18.8 ~ 21.8V

30 ~ 34.8V

41.4 ~ 48.6V

57.6 ~ 67.2V

Protection type : Shut down o/p voltage, re-power on to recover

OVER TEMPERATURE

Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

DC OK SIGNAL

PSU turn on : 3.3 ~ 5.6V ; PSU turn off : 0 ~ 1V

FAN CONTROL (Typ.)

Load 20±10% or RTH2≧50℃ Fan on







ENVIRONMENT

WORKING TEMP.

-40 ~ +70℃ (Refer to "Derating Curve")

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +85℃, 10 ~ 95% RH non-condensing

TEMP. COEFFICIENT

±0.03%/℃ (0 ~ 50℃)

VIBRATION

10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes



SAFETY & EMC

(Note 4)

SAFETY STANDARDS

UL62368-1, TUV EN62368-1, EAC TP TC 004 approved

WITHSTAND VOLTAGE

I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH

EMC EMISSION

Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2, heavy industry level, criteria A, EAC TP TC 020



OTHERS

MTBF

139.9K hrs min.        MIL-HDBK-217F (25℃)

DIMENSION

218*105*41mm (L*W*H)

PACKING

1.19Kg; 12pcs/15.3Kg/0.82CUFT

NOTE

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.

4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on     a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com}

5. Derating may be needed under low input voltages. Please check the derating curve for more details.

6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.

7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft}.
