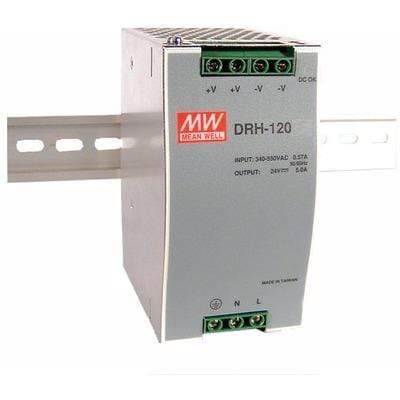

MEANWELL DRH Series Rail Mount Power Supply x20Pcs

MEANWELL DRH Series Rail Mount Power Supply x20Pcs

Regular price Rp 31.497.000 IDR
Regular price Rp 33.600.000 IDR Sale price Rp 31.497.000 IDR
Sale Sold out
Shipping calculated at checkout.

SKU:DRH-120-24

Power
Voltage
Request For Quote

Datasheet

Features :

  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Built-in constant current limiting circuit
  • Can be installed on DIN rail TS-35/7.5 or 15
  • EN61000-6-2(EN50082-2} industrial immunity level
  • 100% full load burn-in test
  • Fixed switching frequency at 70KHz

Specification:

MODEL

DRH-120-24

DRH-120-48













OUTPUT

DC VOLTAGE

24V

48V

RATED CURRENT

5A

2.5A

CURRENT RANGE

0 ~ 5A

0 ~2.5A

RATED POWER

120W

120W

RIPPLE & NOISE (max.) Note.2

80mVp-p

80mVp-p

VOLTAGE ADJ. RANGE

24 ~ 28V

48 ~ 55V

VOLTAGE TOLERANCE Note.3

±1.0%

±1.0%

LINE REGULATION

±0.5%

±0.5%

LOAD REGULATION

±0.5%

±0.5%

SETUP, RISE, HOLD UP TIME

1700ms, 120ms, 16ms/400VAC           1000ms, 120ms, 30ms/500VAC at full load









INPUT

VOLTAGE RANGE

340 ~ 550VAC           480 ~ 780VDC

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY (Typ.)

85%

86%

AC CURRENT

0.65A/400VAC           0.6A/500VAC

INRUSH CURRENT (max.)

COLD START 50A

LEAKAGE CURRENT

<3.5mA / 530VAC









PROTECTION



OVERLOAD

105 ~ 160% rated output power

Protection type : Constant current limiting, recovers automatically after fault condition is removed



OVER VOLTAGE

30 ~ 36V

59 ~ 66V

Protection type : Shut down o/p voltage, re-power on to recover



OVER TEMPERATURE



Protection type : Shut down o/p voltage, recovers automatically after temperature goes down







ENVIRONMENT

WORKING TEMP.

-20 ~ +60℃ (Refer to "Derating Curve")

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +85℃, 10 ~ 95% RH

TEMP. COEFFICIENT

±0.03%/℃ (0 ~ 50℃)

VIBRATION

Component: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting clip: Compliance to IEC60068-2-6



SAFETY & EMC

(Note 4)

SAFETY STANDARDS

UL60950-1, EAC TP TC 004 approved, IEC60950-1 CB approved by SIQ

WITHSTAND VOLTAGE

I/P-O/P:3KVAC I/P-FG:2.0KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH

EMC EMISSION

Compliance to EN55011 (CISPR11), EN55032 (CISPR32), EN61204-3 Class B, EAC TP TC 020

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11, EN61204-3, EN61000-6-2 (EN50082-2), heavy industry level, criteria A, EAC TP TC 020



OTHERS

MTBF

178.7Khrs min.       MIL-HDBK-217F (25℃)

DIMENSION

65.5*125.2*100mm (W*H*D)

PACKING

0.75Kg; 20pcs/16Kg/1.29CUFT

NOTE

1.  All parameters NOT specially mentioned are measured at 400VAC input, rated load and 25℃ of ambient temperature.

2.  Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3.  Tolerance : includes set up tolerance, line regulation and load regulation.

4.   The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.

5.  The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft}.
